The Piper Archer
The Archer is a modern and reliable aircraft for both teaching and cross-country flying.
Four Seat, Cabin-Class
Lycoming O-360, 180 hp
128 ktas, maximum cruise speed
522 nm, maximum range
870 lbs, standard useful load
The Piper Archer has been, and continues to be, the perfect gateway to launching pilots’ flying careers all over the world. With a 180 HP Lycoming engine and an advanced Garmin G1000 Avionics Suite, the Archer is a modern and reliable aircraft for both teaching and cross-country flying. It also offers numerous options and upgrades, such as the stylish LX package, ready to fit any private pilot’s or flight school’s needs.
Archer Quick Facts
Avionics

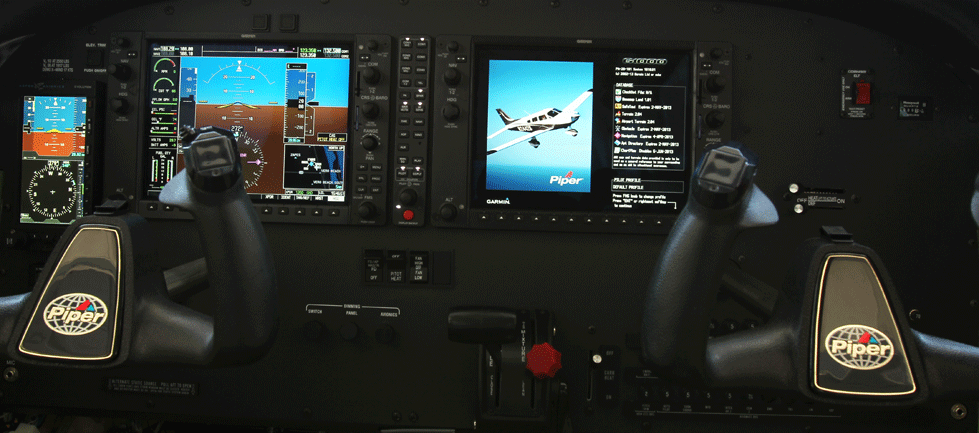

Garmin G1000 Suite
Interior
Leather, 3 color options
Powerplant
Lycoming O-360, 180 hp
Cruise Speed, 75% power
128 ktas
Range with 45 Min. Reserve
522 nm
Service Ceiling
14,100 ft
Takeoff Distance (Ground Roll)
1,135 ft
Landing Distance (Ground Roll)
920 ft
MTOW
2,550 lbs
Standard Equipped Weight
1,688 lbs
Standard Useful Load
870 lbs
Usable Fuel Capacity
48 US gal
Dimensions
Wing Span 35.5 ft
Length 24.0 ft
Height 7.3 ft
Where the journey begins.
